RRD Hardcore Wave Ltd V5

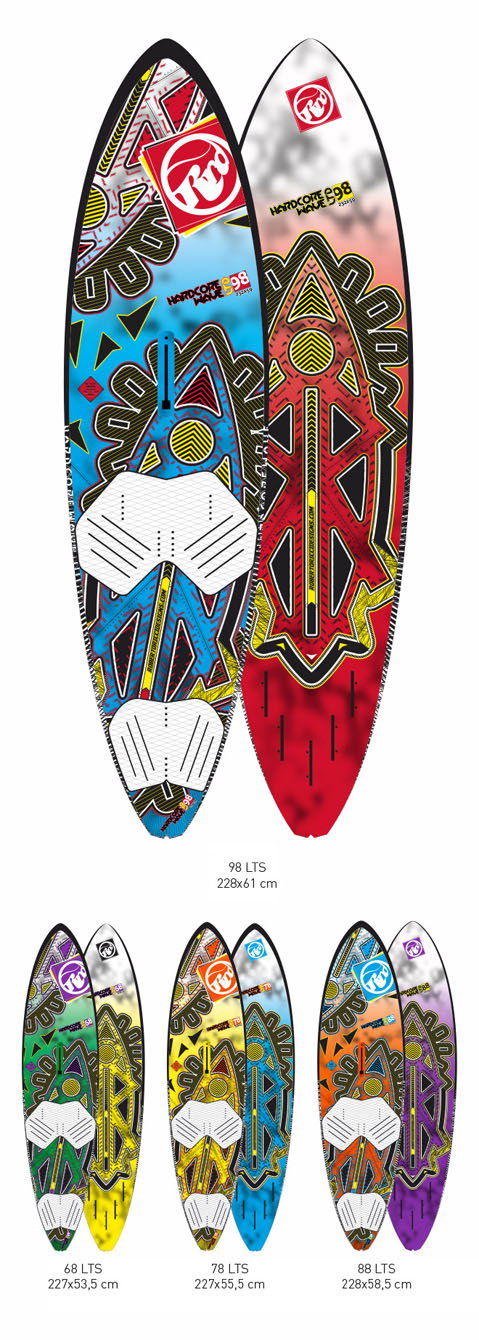

Quattro nuovi shape  (68, 78, 88, 98 litri) della linea Hardcore arrischiscono ufficialmente da qualche ora la gamma wave di RRD, affiancando i nuovi Firewave (82, 92, 102) ed i gloriosi Wave Cult (75, 83, 92, 100).

RRD - Hardcore Wave V5 from RRD International on Vimeo.

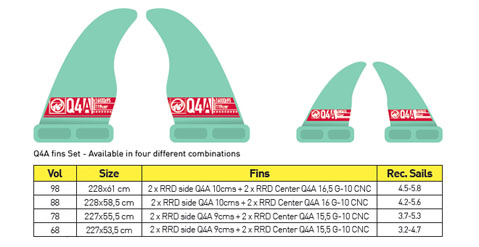

After 4 years of ridng waves all over the world with the Hardcore wave shapes V4 we have been able to test lots of different new shapes or prototype boards, used with different riding styles. Today we have been able to finalize 4 new magic shapes. The HardcoreWave V5 are the most vesatile Hardcore boards ever build it since their introduction in our collection. 4 Shapes with 10lt of difference in between 98 all the way down to 68 all equipped with 4 Fins slot box system for maxium drive trough the top and bottom turns.
Program: Side Shore Wave Pro
Features: We have started from a scratch and we decided to only keep the name of the previous boards.
Rockerline: We used our Wave Premium scoopline and we added a little more curve starting from 90cm from tail, slightly increasing the rocker just towards to the end of the tail. We have also adjusted the overall flow of the scoopline on the boards to the millimiter to find the perfect balance for quick planing and radical turns.
Outline: We decided to go for quite a wider nose compared to the Cult line to allow a straighter and parallel line towards the tail and quite narrow one foot off overall width.
We then designed a completely new tail coming from our new kite-surf shapes.
Tail: The special “squared-swallow” tail allows to keep the last part of the outline as parallel and straight as possible. This increases the portion of the rail in contact with water during turns, giving the best grip and best drive possible.
Volume: The Volume distribution has been very accurate, and revised several times before the final shapes came out. 1st priority has been the ease of use. Particularly, we felt that we needed a board that would let you go through the line up in the most extreme ligthwind conditions. In these conditions you need a board that sinks evenly and lets you keep floating and sailing out. For this we shaped the deck as flat as possible and we took a lot of attention on the area between the footstraps. We created a flat spot in the middle of the deck., with quite a remarked angle at the joint with the rail, so that your back foot will be locked in place with comfort even when planing with only the front foot in the strap.
Hull: The bottom shape is the board’s Graal. We have used a V configuration with slightly double concave up to the mast track. Then the V/Double Concave becomes progressively a full double concave running into a concave. On the mid tail the concave will decrease and at the very end it will be almost flat. A V into concave will give you a better early planing and will keep the board behaviour as radical and aggressive in the turns as it can be.
Technology: Full Custom technology- EPS core/Full Sandwich PVC 100 Kgs/m3- 3mm on deck and 5/3 mm on bottom. Innegra Carbon 175 grms layup deck with PVC double sandwich stringers on bottom/ full polished faded paint rails and bottom.
